Vacuum Suction Lifters 2 Pieces up to 100 kg

Move large glass, tile, or stone slabs – with a practical lifting aid for smooth surfaces.

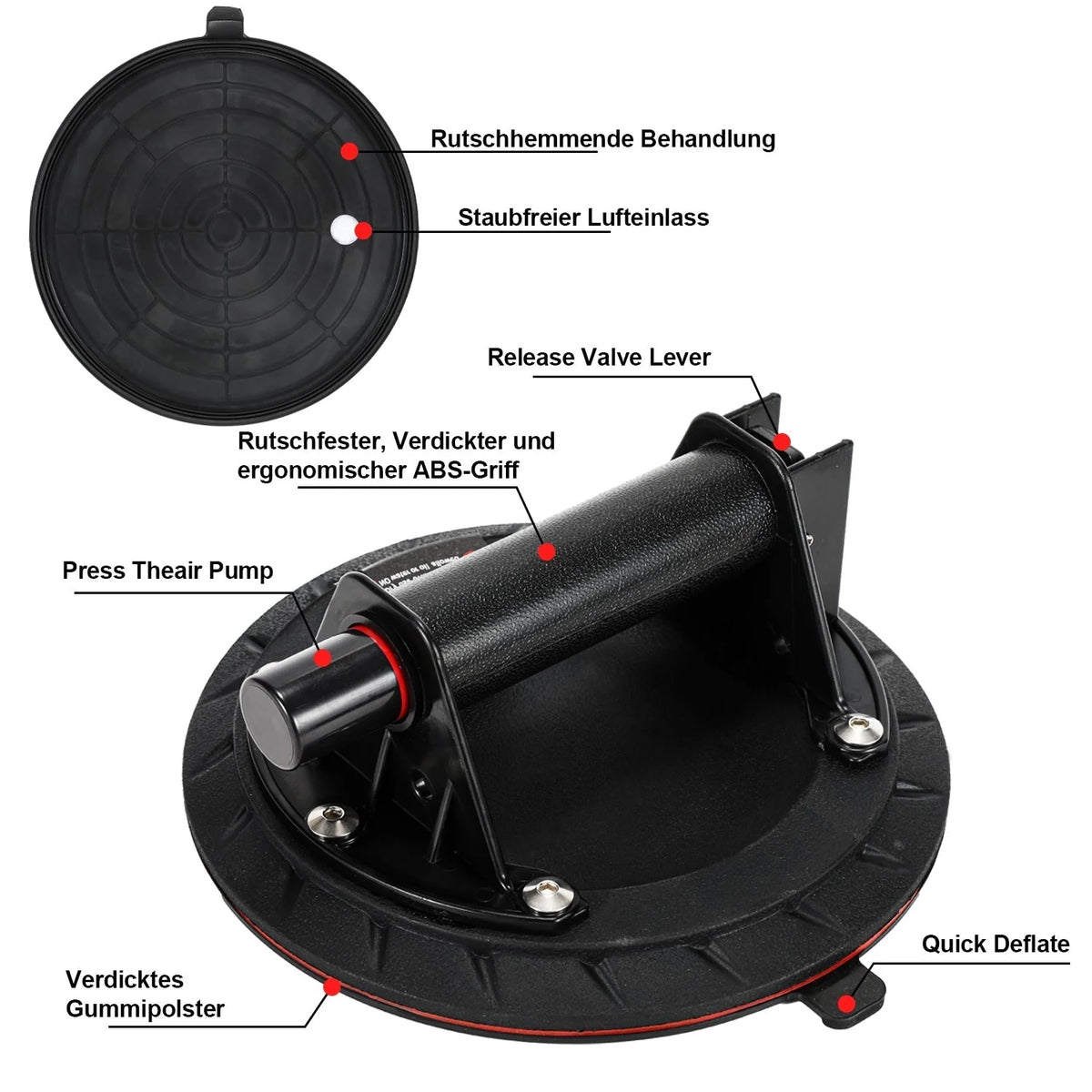

These vacuum suction cups are designed for lifting, positioning, and transporting materials with smooth, non-porous surfaces. The integrated hand pump allows you to create a vacuum, while the pressure gauge displays the current vacuum status.

Benefits

• Control of vacuum status: The integrated indicator allows visual monitoring of the vacuum created during use.
• Suitable for various materials: Usable on appropriate smooth and non-porous surfaces such as glass, tiles, marble, metal, or plastic.
• Ready to use immediately: The pump system allows preparation of the suction cup directly at the place of use without additional tools.

Specifications

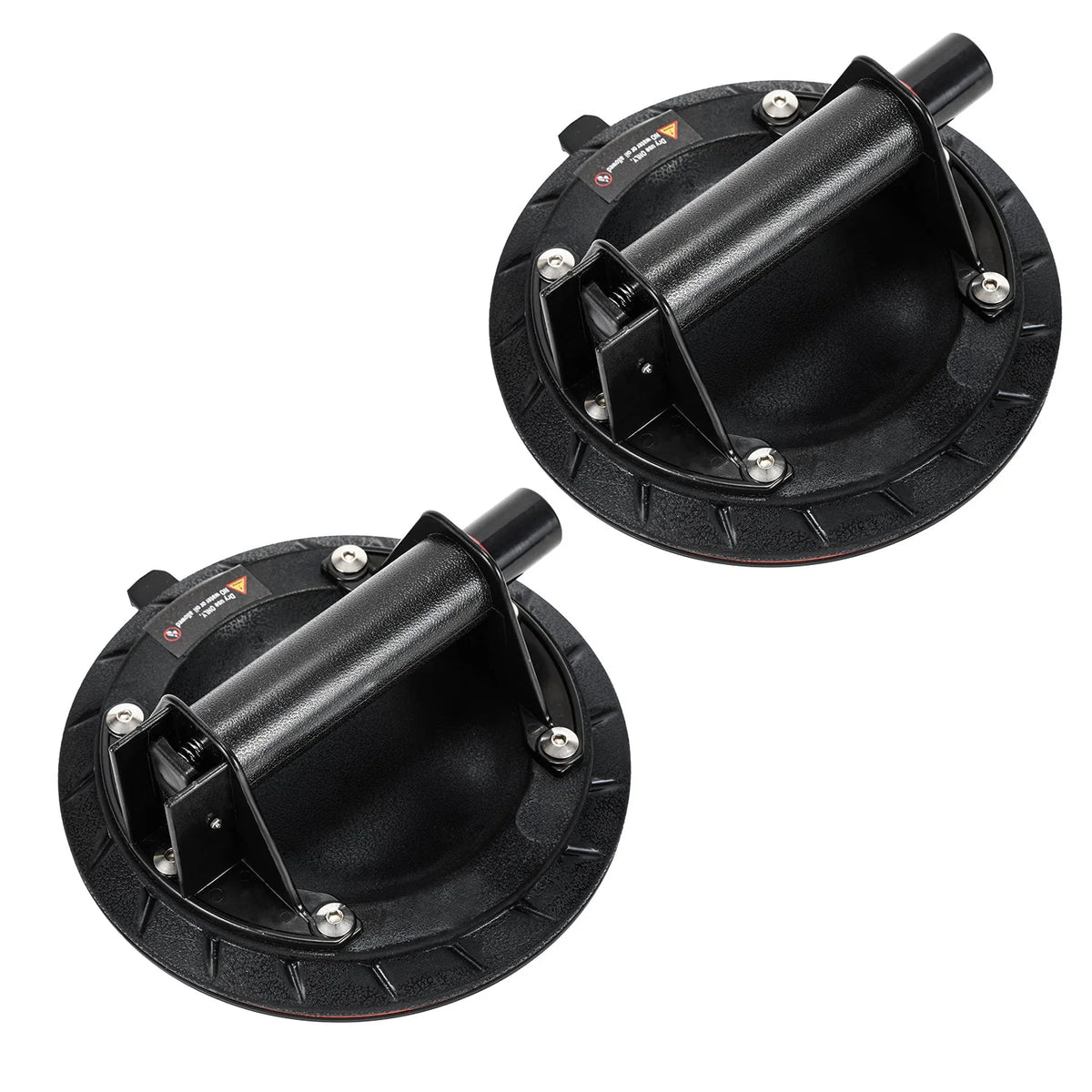

• Scope of delivery: 2 × vacuum suction cups
• Weight per piece: 0.95 kg
• Theoretical maximum suction force: Up to 120 kg
• Specified load capacity: Up to 100 kg per suction cup

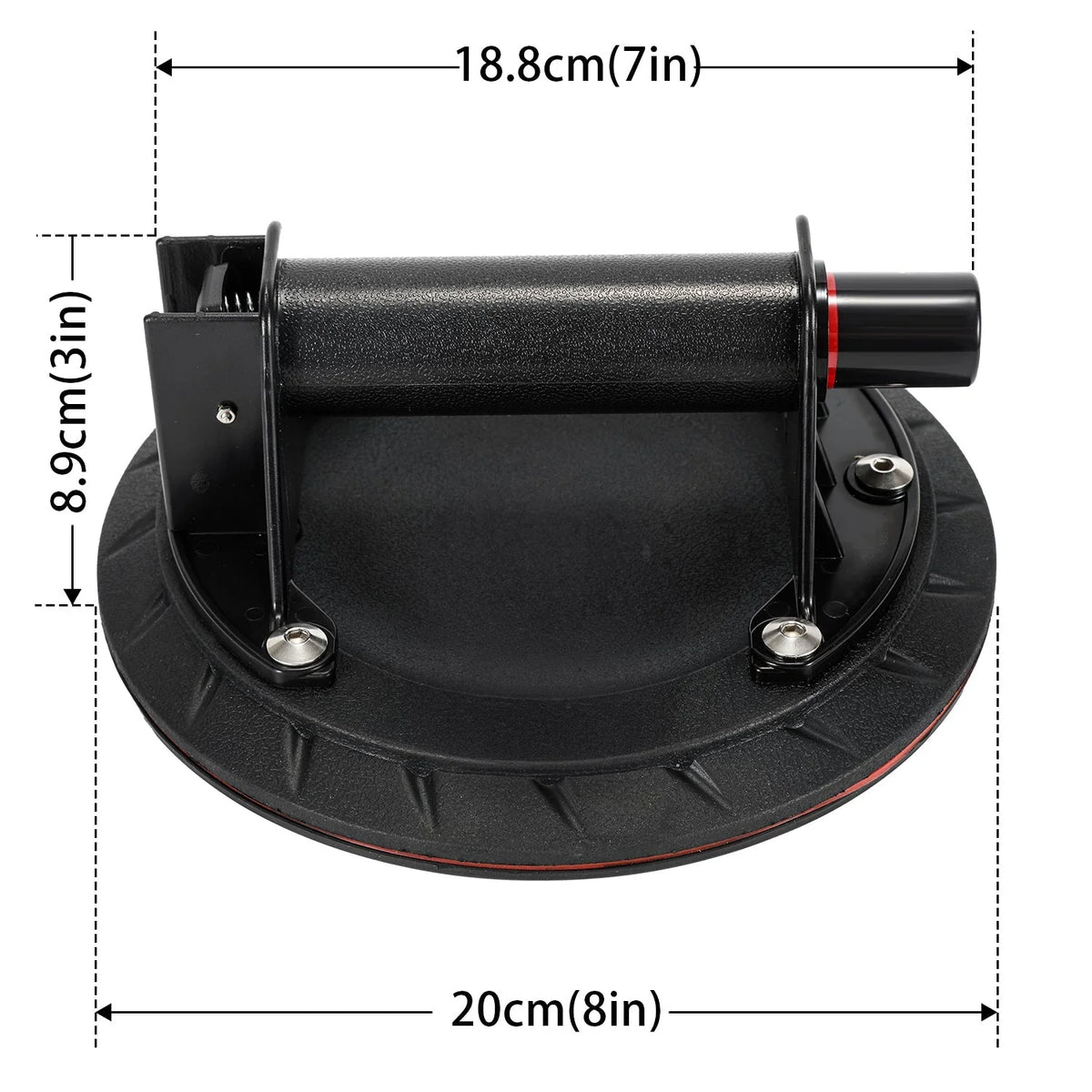

• Suction cup diameter: Approx. 20 cm (20.6 cm / 8 inches)
• Material: ABS plastic, rubber
• Suitable surfaces: Smooth, non-porous surfaces such as glass, tiles, marble, metal, and plastic

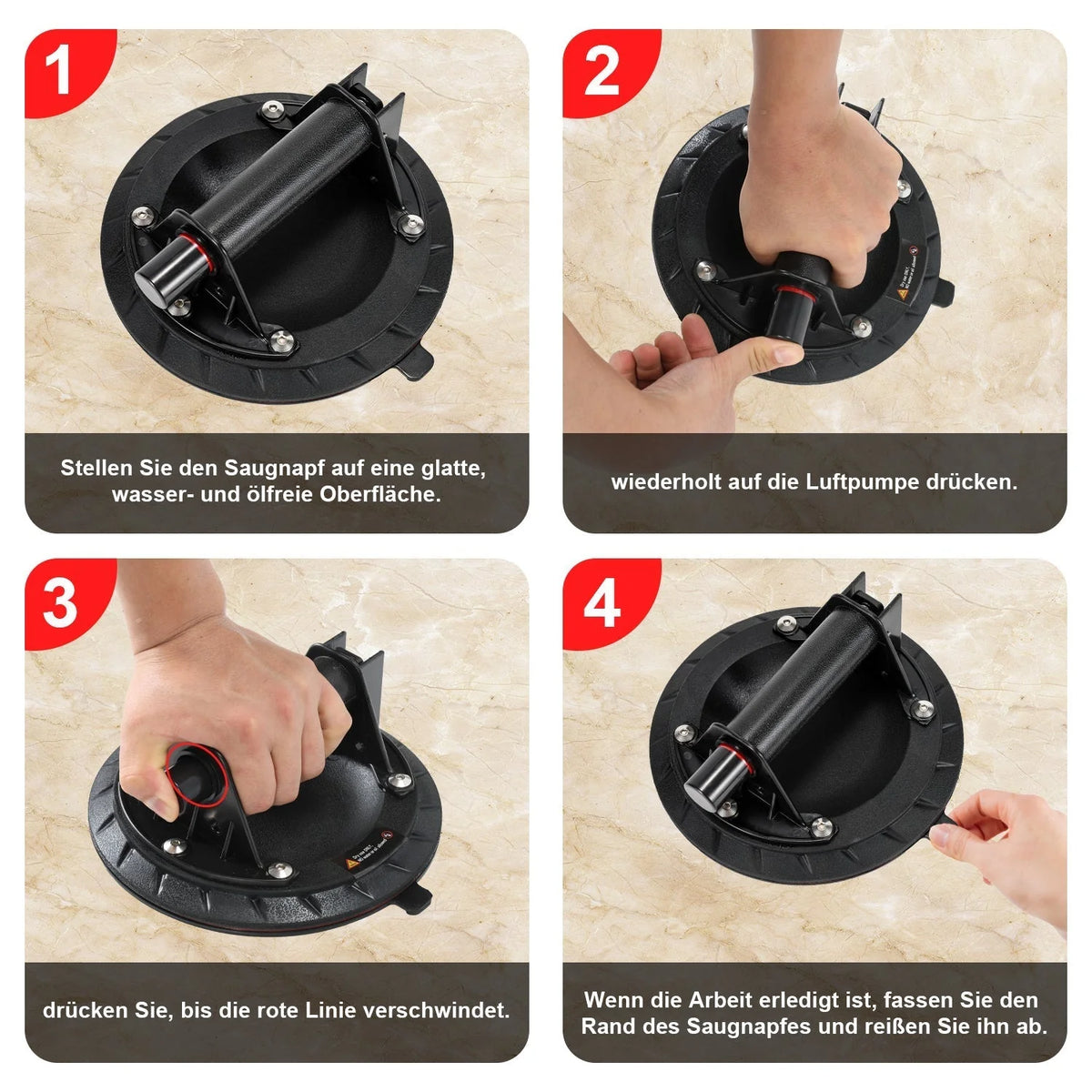

Usage

1. Prepare: Clean the surface and ensure it is dry, clean, and large enough for the suction cup.
2. Create vacuum: Attach the suction cup and operate the hand pump until the gauge indicates the desired vacuum level.
3. Use: Move or position the workpiece according to the manufacturer’s instructions.
4. Release: Operate the release valve to control the vacuum release.

Pro tip: For large workpieces, multiple suction cups can be used to distribute the load across several grip points and facilitate handling.
